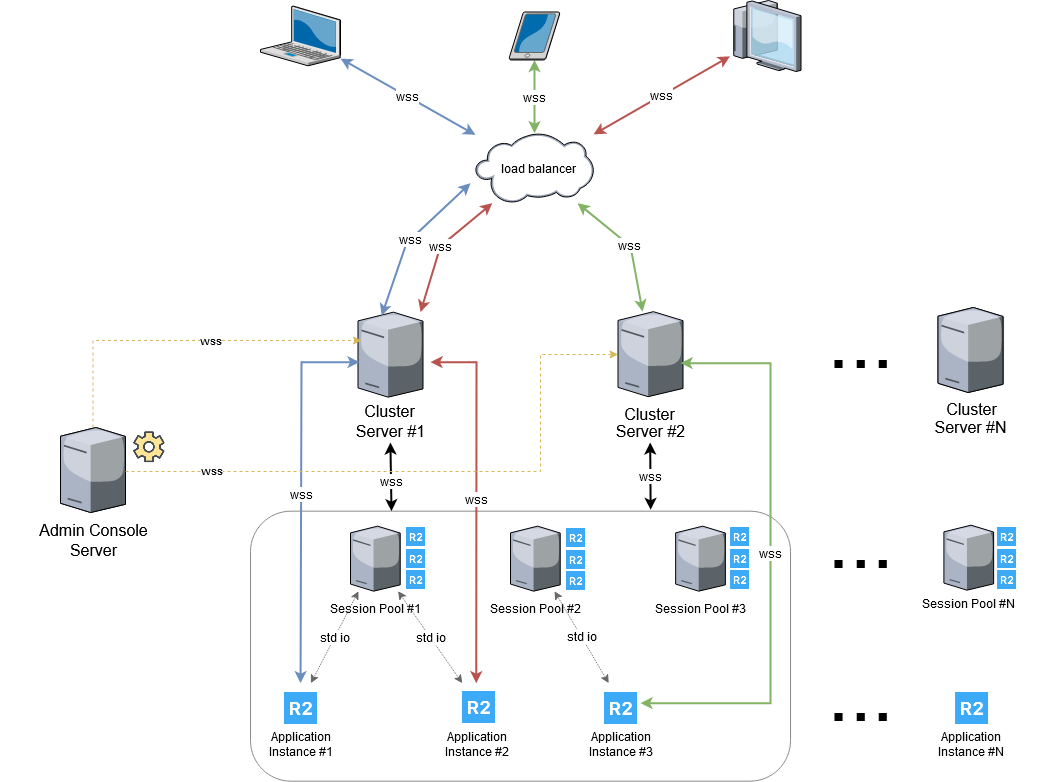

1 .. N R2Web Cluster Servers
1 .. N R2Web Session Pools
0 .. 1 R2Web Admin Console
R2Web Cluster
-
This module is linked to the load balancer.
-
The primary goal of this module is to efficiently direct requests from the browser to the session pool (application instance).
-
This module ensures higher availability by allowing users to connect to the application instance from another cluster in case one cluster experiences downtime.
-
R2Web Cluster follows the round-robin policy to select the connected session pool.
R2Web Session Pool
-
This module manages the application instance.
-
It oversees all R2 application instances initiated and supervised within this layer.
-
This module is lightweight and can seamlessly connect to multiple clusters.
R2Web Admin Console
-
The system will feature a single Admin Server to oversee operations.
-
This module is designed to centrally handle application configurations for all connected clusters and session pools.
-
Please note that the system permits only one Admin Server at any given time.
