Bin and Shelf change history report
Content was last updated in 06.01.17-00
Revision History
Version No. | Reference No. | Changes |
06.01.17-00 | R2-17836 | Support to generate a report for Bin/Shelf change information |
You can generate a custom report to see the changes done on Bin/Shelf information. For the same, a new report, Rep_AssetInfoChangeHistoryView is introduced where you can see who and when the Shelf/Bin information is changed and through which R2 product the information is changed. This helps you to keep track of Shelf/ Bin change. Know more about Shelf/Bin.
If the Shelf/ Bin value entered when the Asset is created for the first time, you will not see a report for one. Only when the Shelf/Bin value is changed from the initial value second time, the change information can be retrieved along with the previous values in the report.
You will be able to see the following details in the report:
Table 1.0: Column details
Column | Description |
Asset ID | Displays the Asset ID |
Asset Description | Displays the Asset description |
Field Name | Displays for which field the value is changed such i.e. whether the change is happened for Shelf / Bin Number field |
Modified by (Employee ID) | Displays the employee id who modified the value |
Modified by (Employee name) | Displays the employee name who modified the value |
Modified Date | Displays the date on which the Shelf/ Bin Number value changed |
New Value | Displays the new value of the Shelf/ Bin Number |
Previous value | Displays the previous value of the Shelf/ Bin Number |
Product Description | Displays the product description of the asset |
Product ID | Displays the product ID of the asset |
Source name | Displays where the Shelf/Bin info is changed like through the R2/ Asset manager mobile app/ API/ Serial Data Conversion. |
Source Type | Displays 0 when the Shelf/Bin info is updated from R2. Displays 1 when the Shelf/Bin info is updated from Asset Manager mobile app. Displays 2 when the Shelf/Bin info is updated through Serial Data Conversion. |

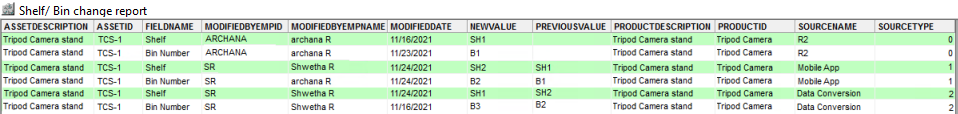

Figure 1.1: Sample Report
